Hey there! As a supplier of Fire Water Supply Pumps, I've seen firsthand how crucial it is to conduct a proper acceptance test for these pumps. A well - executed acceptance test not only ensures the pump's performance but also guarantees the safety of the entire fire protection system. In this blog, I'll walk you through the steps on how to conduct an acceptance test for a fire water supply pump.
Pre - test Preparation
Before diving into the actual test, you need to do some groundwork. First of all, gather all the necessary documentation. This includes the pump's technical specifications, installation drawings, and any operation and maintenance manuals. These documents will serve as your reference throughout the test, helping you understand the pump's expected performance and installation requirements.
Inspect the physical installation of the pump. Check if the pump is properly aligned and securely mounted. Loose mounting can lead to excessive vibrations during operation, which can damage the pump over time. Also, examine the piping connections. Make sure there are no leaks, and the pipes are correctly sized and routed according to the design.
Verify the electrical connections. Ensure that the power supply is stable and matches the pump's electrical requirements. Faulty electrical connections can cause the pump to malfunction or even pose a safety hazard.
Visual Inspection
Once the pre - test preparation is done, start with a visual inspection of the pump. Look for any signs of physical damage, such as cracks in the pump casing, bent shafts, or damaged impellers. A damaged component can significantly affect the pump's performance and may need to be replaced before the test.
Check the pump's lubrication system. If the pump has a lubrication system, make sure the oil level is correct and the oil is clean. Dirty or insufficient lubrication can cause excessive wear and tear on the pump's moving parts.
Inspect the seals and gaskets. Leaking seals can lead to loss of pressure and reduced pump efficiency. Replace any damaged seals or gaskets before proceeding with the test.
Performance Testing
Now, it's time for the performance testing. Start by filling the pump and the suction line with water. This is important to prime the pump and ensure proper operation.
Run the pump at its rated speed. Measure the flow rate and the head pressure. You can use flow meters and pressure gauges for this purpose. Compare the measured values with the pump's rated specifications. If the measured values are significantly different from the rated values, there may be an issue with the pump.
For example, if the flow rate is lower than expected, it could be due to a clogged impeller, a blockage in the piping, or an issue with the pump's motor. On the other hand, if the head pressure is too high, it might indicate a problem with the discharge valve or the piping system.
Conduct a variable - speed test if the pump is equipped with a variable - speed drive. This will help you understand how the pump performs at different speeds and ensure that it can adjust to varying demand.
Noise and Vibration Testing
During the performance test, pay attention to the noise and vibration levels of the pump. Excessive noise and vibration can be a sign of mechanical problems, such as misaligned shafts, unbalanced impellers, or loose components.
Use vibration sensors and sound level meters to measure the noise and vibration levels. Compare the measured values with the acceptable limits specified in the pump's documentation. If the levels are too high, stop the pump immediately and investigate the cause.
Safety Testing
Safety is of utmost importance when it comes to fire water supply pumps. Test the pump's safety features, such as the over - temperature protection, over - current protection, and emergency stop buttons.
Simulate an over - temperature or over - current situation to check if the pump's safety mechanisms work properly. Press the emergency stop button to ensure that the pump stops immediately.
Testing in Different Conditions
It's also a good idea to test the pump in different operating conditions. For example, you can test the pump under different water levels, different pressures, and different flow rates. This will give you a better understanding of the pump's performance and its ability to handle various scenarios.
Post - test Evaluation
After completing all the tests, it's time to evaluate the results. Review the test data and compare it with the pump's specifications. If the pump meets all the requirements, it can be accepted.
If there are any issues, document them in detail. Work with your technical team to identify the root cause of the problems and develop a plan to fix them. Once the issues are resolved, repeat the relevant tests to ensure that the pump now meets the acceptance criteria.
Why Our Fire Water Supply Pumps?

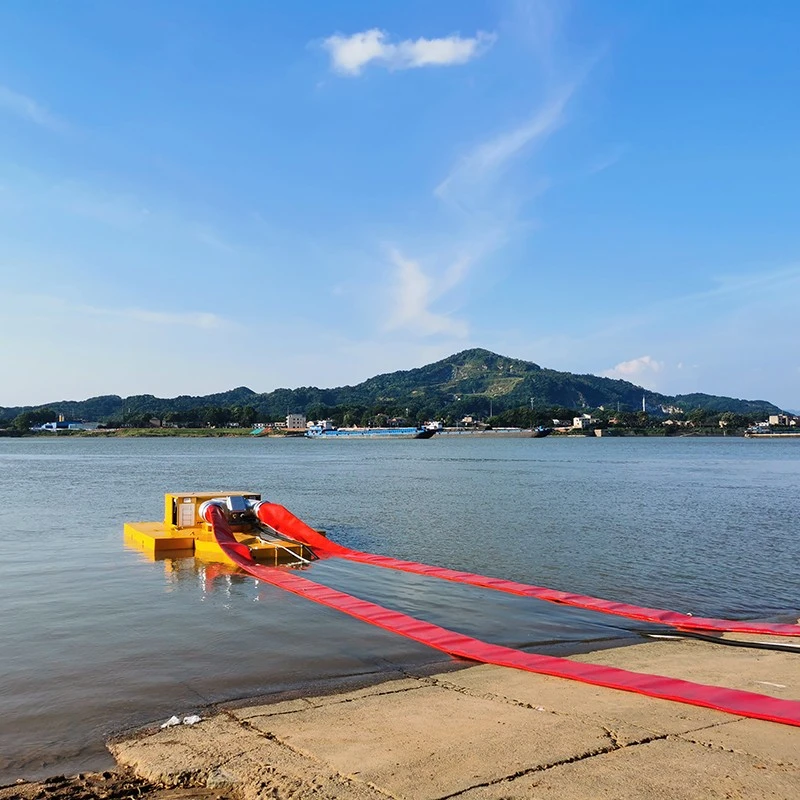

At our company, we take pride in providing high - quality Fire Water Supply Pumps. Our pumps are designed and manufactured to meet the strictest industry standards. We also offer a wide range of related products like Large Flow Mobile Pump Station, Rainstorm Emergency Drainage Equipment, and Subway Flood Pump.
If you're in the market for a reliable fire water supply pump or any of our other products, don't hesitate to reach out. We're always ready to assist you with your procurement needs and can provide detailed information about our products and services.
References
- "Pump Handbook" by Igor J. Karassik et al.
- Manufacturer's operation and maintenance manuals for fire water supply pumps.
