What is the performance curve of a dewatering pump trailer?
As a supplier of Dewatering Pump Trailers, I have deep insights into the importance and implications of the performance curve of these essential pieces of equipment. In this blog, I'll be diving deep into the concept of a dewatering pump trailer's performance curve, its significance, and how it affects the real - world applications of these machines.
Understanding the Basics of a Performance Curve
A performance curve of a dewatering pump trailer is a graphical representation that depicts the relationship between different operating parameters of the pump. The two most common parameters plotted on a performance curve are the flow rate (measured in cubic meters per hour or gallons per minute) and the total head (measured in meters or feet). The total head represents the energy per unit weight required to move water from the source to the discharge point, taking into account factors such as elevation, pressure, and friction losses.
Key Components of the Performance Curve
Flow Rate
The flow rate is a measure of how much water the dewatering pump trailer can move in a given amount of time. It is typically affected by the design of the pump impeller, its rotational speed, and the available power. A higher - flow - rate pump is capable of moving larger volumes of water, which is crucial in applications where rapid dewatering is required, such as flood control or large - scale construction site dewatering.
Total Head
The total head reflects the resistance that the pump has to overcome to move water. This includes the vertical lift of the water (elevation head), the pressure at the discharge point (pressure head), and the energy losses due to friction in the pipes and fittings (friction head). The performance curve shows that as the total head increases, the flow rate of the pump decreases. This is because the pump has to work harder to overcome the increased resistance.
Significance of the Performance Curve
System Design and Selection
For engineers and project managers, the performance curve is an invaluable tool when designing a dewatering system. By understanding the relationship between flow rate and total head, they can select the most appropriate dewatering pump trailer for a specific application. For example, in a situation where the water needs to be pumped to a high elevation, a pump with a high - head performance curve would be required. On the other hand, if large volumes of water need to be moved over a short distance, a pump with a high - flow - rate performance curve would be more suitable.
Operational Efficiency
The performance curve also helps in optimizing the operational efficiency of the dewatering pump trailer. By operating the pump at the point on the curve where the flow rate and total head are best matched to the system requirements, energy consumption can be minimized, and the lifespan of the pump can be extended. Running the pump outside of its recommended operating range can lead to increased wear and tear, reduced efficiency, and even premature failure.
Real - World Applications and the Performance Curve
Construction Sites
On construction sites, dewatering is often necessary to keep the work area dry and safe. The performance curve of a dewatering pump trailer helps construction teams determine the right pump to handle the specific water volume and elevation requirements of the site. For instance, if the site is located in a low - lying area with a high water table, a pump with a high - flow - rate and moderate - head performance curve may be needed to quickly remove the water.
Flood Emergency Response

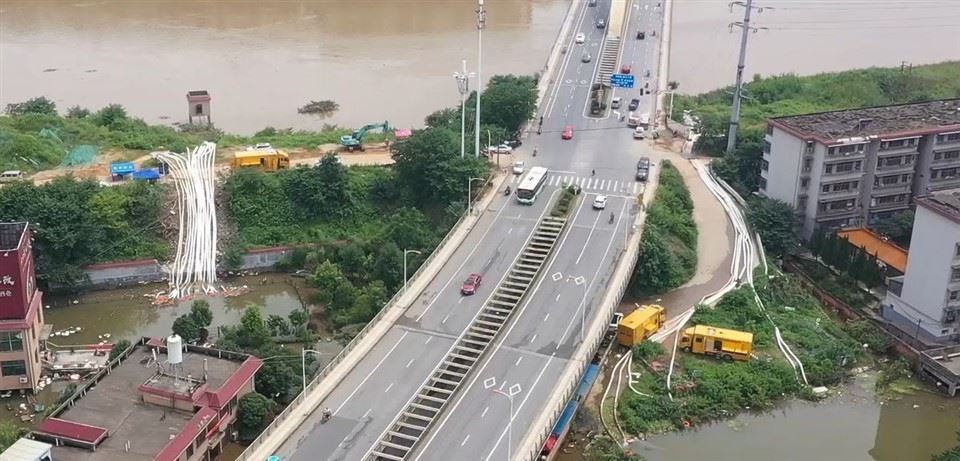

During flood events, rapid and efficient dewatering is crucial to minimize damage and restore normalcy. Emergency Rescue Drainage Pump Trucks and Water Drainage Pump Truck equipped with appropriate dewatering pump trailers can be deployed. The performance curve allows emergency responders to select the pump that can handle the large volumes of floodwater and the associated head requirements, ensuring that the dewatering process is carried out as effectively as possible.
Factors Affecting the Performance Curve
Pump Design
The design of the pump, including the type of impeller, the number of stages, and the volute casing, has a significant impact on the performance curve. For example, centrifugal pumps with a semi - open impeller may have a different performance curve compared to those with a closed impeller, as the open design can affect the flow characteristics and the pump's ability to handle solids.
Fluid Properties
The properties of the fluid being pumped, such as its viscosity, density, and temperature, can also influence the performance curve. A more viscous fluid, for instance, will require more energy to pump, resulting in a lower flow rate for a given head compared to a less viscous fluid.
System Configuration
The configuration of the dewatering system, including the length and diameter of the pipes, the number and type of valves and fittings, and the elevation difference between the source and the discharge point, can affect the performance of the pump. A longer pipe or a higher number of fittings will increase the friction head, reducing the flow rate and altering the performance curve.
How Our Dewatering Pump Trailers Stand Out
Our Dewatering Pump Trailer is designed with a focus on delivering optimal performance across a wide range of flow rates and heads. We use advanced pump design techniques and high - quality materials to ensure that our pumps have efficient and reliable performance curves. Our engineering team conducts rigorous testing to verify the performance of each pump, and we provide detailed performance curve data to our customers, enabling them to make informed decisions about system design and operation.
Additionally, our dewatering pump trailers are equipped with features such as easy - to - use controls, durable trailers, and optional accessories for enhanced versatility. Whether you are dealing with a small - scale residential dewatering project or a large - scale industrial application, our pumps are designed to meet your specific needs.
Contact Us for Discussions
If you are in the market for a dewatering pump trailer and want to learn more about how the performance curve can impact your project, we encourage you to reach out to us. Our experienced sales team is ready to discuss your specific requirements, provide detailed information about our products, and help you select the most suitable dewatering pump trailer for your application. We are committed to providing high - quality products and excellent customer service, and we look forward to partnering with you on your next dewatering project.
References
- Pump Handbook, Karassik, I. J., Messina, J. P., Cooper, P. T., & Heald, C. C.
- Dewatering in Construction, Powrie, W.
