Portable Diesel Pump video

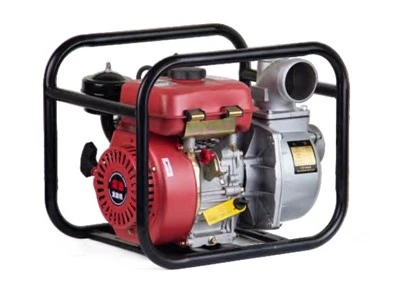

Portable Diesel Pump

Dewater Technology's Portable Diesel Pump is a powerful tool for outdoor operations and emergency scenarios. It is widely adaptable to diverse needs such as outdoor activity resupply, farmland irrigation, flood control and drainage, and emergency water supply.

Description

Dewater Technology's Portable Diesel Pump is a powerful tool for outdoor operations and emergency scenarios. It is widely adaptable to diverse needs such as outdoor activity resupply, farmland irrigation, flood control and drainage, and emergency water supply. Wherever water is needed, it delivers precise power.

Equipped with a powerful core, its pumping efficiency far exceeds that of conventional equipment, enabling rapid water extraction and discharge, easily handling large-flow water supply demands. It also boasts the advantages of easy start-up and worry-free maintenance. No complicated operation is required; it's easy to learn and use, and daily maintenance is simple and efficient, greatly reducing the barrier to entry.

Equipment Specification



Model

WPD15

WPD20

WPD30

WPD40A

WPD40B

Flow( m³/h)

20

30

50

75

90

Head (m)

20

28

30

25

30

Inlet&Outlet size

(mm)

40

50

80

100

100

Max Suction Height

(m)

7

8

8

7

8

Diesel Type

Single cylinder, Four stroke,Vortex Chamber, Type, Forced Air Cooling

Displacement (cc)

93.5

210

210

210

390

Power (hp)

3.0

7.5

7.5

7.5

13

Speed (rpm)

3000/3600

Bore × Stroke

(m*m)

56*38

70*54

70*54

70*54

88*64

Compression ratio

7.7

8.5

8.5

8.5

8.2

Fuel Tank Volume

(L)

1.6

3.6

4.2

4.2

6.5

Weight

(kg)

22

28

30

39

49

Size

(mm)

420*335*335

488*390*408

510*390*431

605*435*480

635*455*545

Note: 1. The specific configuration list is only for reference and is subject to the actual product;



Its working principle is scientifically reliable: After the pump is filled with water, the power system drives the impeller to rotate at high speed, instantly generating a strong centrifugal force. The water in the impeller channels is thrown to the outside of the pump casing under the action of centrifugal force, creating a low-pressure zone in the center of the impeller. Utilizing this pressure difference, water in the suction pool automatically flows into the impeller, achieving continuous water intake and stable water supply circulation, ensuring uninterrupted and highly efficient operation.

Whether it's ensuring irrigation during busy farming seasons, flood control and disaster relief during the flood season, or emergency water supply in outdoor scenarios, Dewater Technology's Portable diesel pumps, with their core advantages of strong power, high adaptability, and ease of operation, have become your worry-free and labor-saving high-quality choice.
