High-efficiency Mobile Pumping Stations

The High-efficiency Mobile Pumping Stations series from Dewater Technology offers a robust and versatile solution for emergency response, flood drainage, and high-capacity water supply.

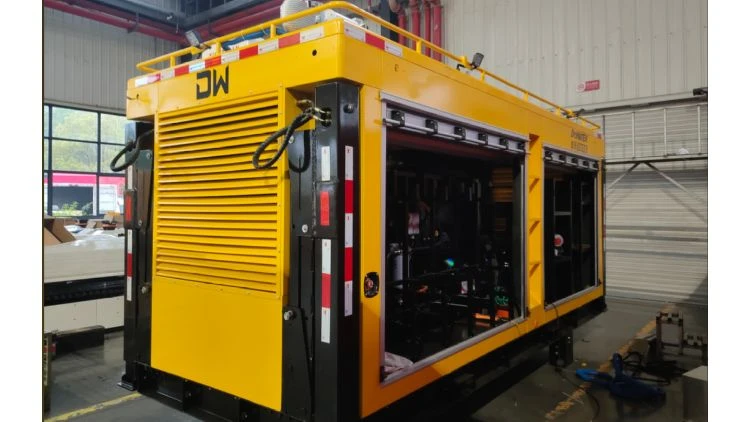

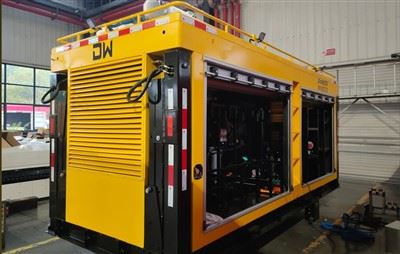

These units feature a compact and lightweight design paired with powerful pumps to ensure rapid and reliable water management. Engineered and meticulously tested by Dewater Technology, the High-efficiency Mobile Pumping Stations series integrates advanced diesel generator for optimal performance.

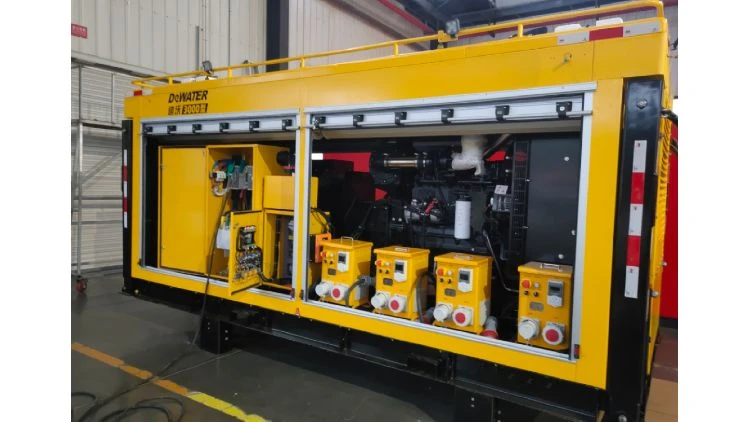

This fully self-sufficient system operates independently, equipped with built-in noise-reducing components for quiet operation. The control cabinet are designed for ease of use, featuring comprehensive functions such as flow rate monitors, frequency adjustment for intake and discharge, emergency stop functionality, and adjustable speed settings, ensuring seamless operation in critical scenarios.



Drainage Range(m³/h)	3000-4000
Head(m)	8-40
Pump	QQ/QW Series
Power Unit(kW)	145-200
Gross Weight(kg)	6100



Configuration List

No	Components	Specification	Unit
1	High-efficiency Mobile Pumping Stations	Pumping Station	PCS
2	Power Generator System	Diesel generator set;	SET
3	Dewatering System and Control system	Dewater high-flow portable submersible pump and mobile drainage rescue unit control system;	SET
4	Drainage Hose	Drainage hose with connector, clamp, hose clamp, etc.	PCS
5	Extension Cable	IP67 Cable with quick connector;	PCS
6	Floater	Integrated square float;	PCS
7	External Lighting	LED lighting system. (Option)	PCS
8	Fire extinguisher	/	PCS
	Input and output boxes	/	PCS
	Main control box	/	PCS
	Others	Pumping Station User Manual	PCS
		Quality warranty card	PCS
		Cabin Tools	PCS
		Water pump instruction manual	PCS
		Generator Instruction Manual	PCS
		Wireless remote control system instruction manual	PCS



Note: 1. The specific configuration list is only for reference and is subject to the actual requirements;





• Pump Can Be Separated from Pumping Station

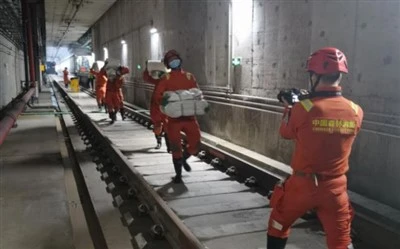

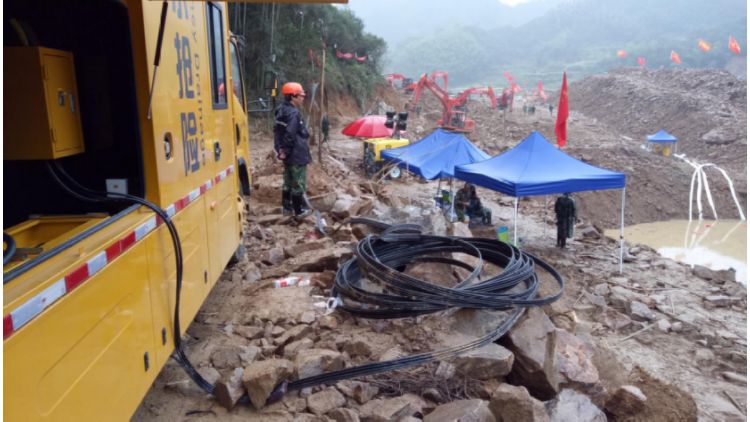

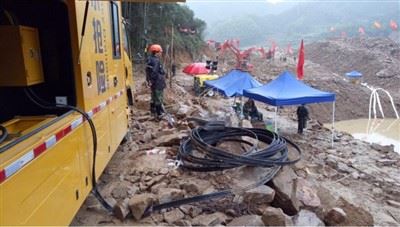

The pump of the High-efficiency Mobile Pumping Station can be detached from the main unit, providing increased flexibility for water drainage operations. Once separated, the pump can be connected to a diesel generator via cable, which enables the pump to be operated at a location far from the main pumping station. This allows workers to position the pump in hard-to-reach or high-risk areas where drainage is needed most, ensuring that water can be quickly evacuated regardless of the site's layout or accessibility.





• Control Cabinet Can Be Separated from the Pump

The control cabinet of the High-efficiency Mobile Pumping Station can also be detached from the pump itself, allowing for even greater operational mobility. The pump and control unit are connected through a cable, enabling the pump to be relocated up to 500 meters away from the controller. This feature is particularly useful in large-scale drainage operations, as the pump can be moved to different areas, and the control cabinet can remain in a safe, accessible location for easy monitoring and adjustments during operation.





• Easy to Carry Water Belt

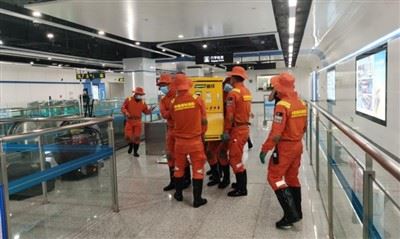

The High-efficiency Mobile Pumping Station comes with a convenient system for easily deploying and connecting water belts. The water belts are equipped with fast clamps and tools, making them quick to attach and detach. This allows for rapid deployment of multiple water belts as needed, which can be manually carried by personnel to various locations on-site. This portable design enhances operational efficiency, as workers can quickly set up and extend water belts to divert large volumes of water, ensuring that drainage tasks are carried out swiftly and effectively.
