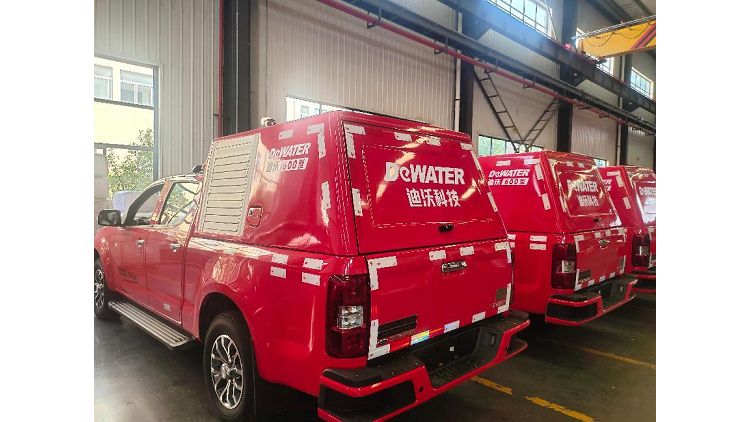

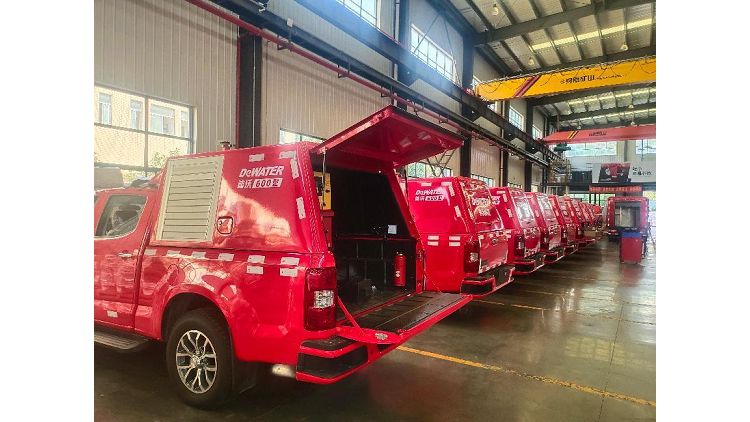

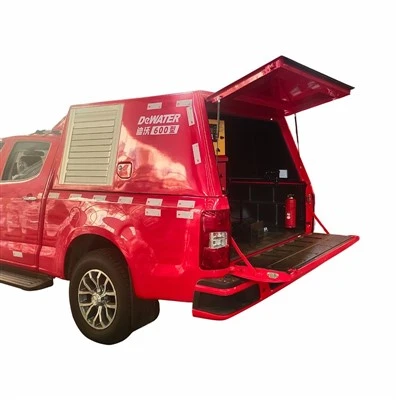

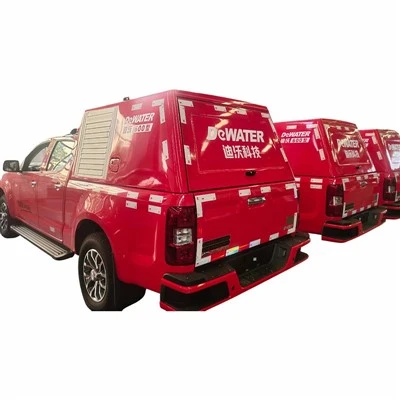

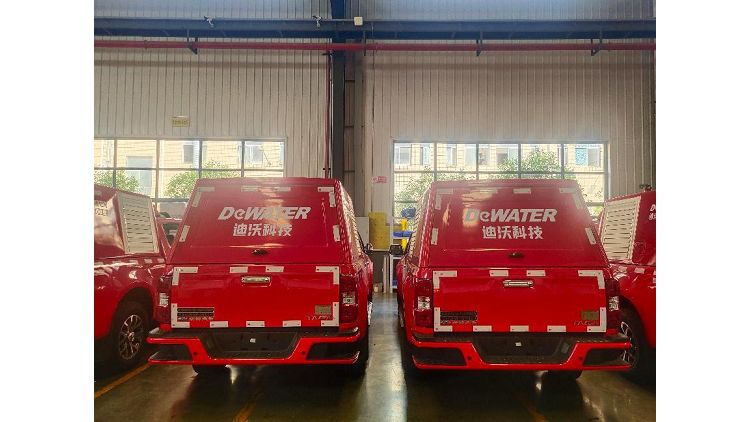

Emergency Water Rescue Pickup

No.

Name

Specification

1

Pickup Parameters

Dimension: length 5685mm, width 1935mm, height 2140mm; weight: 3460kg;

2. Pickup can be pointed the brand accordingly.

2

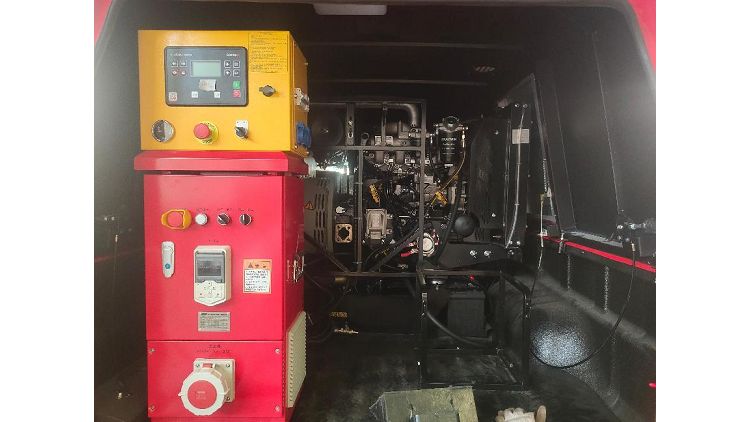

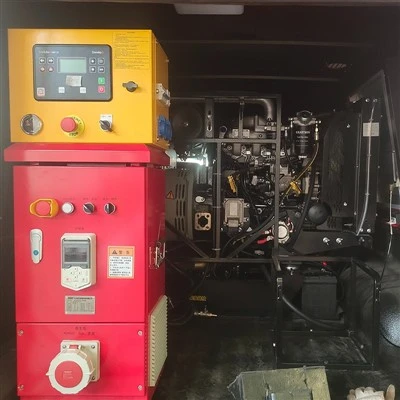

Power Generation System

1. The rated output power of diesel generator set is 30KW, and the rated power of the unit can be changed according to the required drainage unit configuration. The whole unit adopts three-phase four-wire system;

2. Rated voltage: line voltage 380V±10%, phase voltage 220V±10%;

3

Drainage System

1. Max flow: 800m³/h with Max Head: 40m;

2. The single pump body is made of high-strength lightweight alloy, the water pump impeller is made of 2Cr13 material, and the surface is treated with wear-resistant hard coating;

3. It can work normally within 50-200 meters from the drainage cabin, realizing long-distance work;

4

Lighting System

1. Internal & External Cabin lighting: it is equipped with an LED light;

5

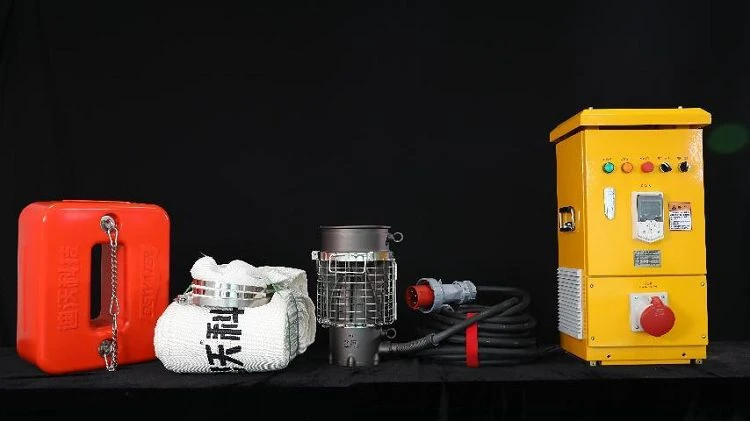

Supporting Equipment

Single set of water pump configuration list：

1. The pump comes with a cable: the cables are connected with waterproof quick connectors, and the connector protection level is IP67;

2. Drain hose: each drainage hose has a hose connector and a stainless steel quick clamp;

3. Equipped with polyurethane high-strength floater, the floater is integrally formed, with a bayonet lifting ring to connect the soft fixed sling. Each water pump is equipped with 1 floater;
